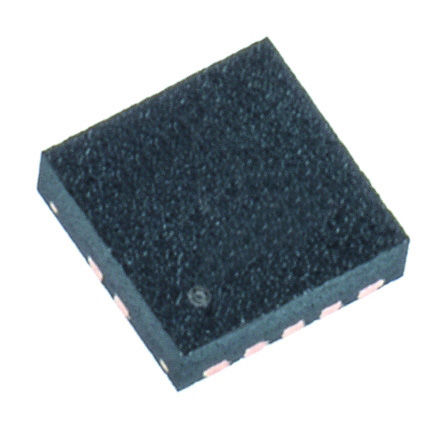

BQ24022DRCR - TI
Manufacturer:
TI
ManyChip's Part#:
MC7381320
Category:
Battery Management IC
Package:
VSON-10
Datasheet:
Datasheet 3D Model
Description:
Battery Charge Management bqTINY-II Dual Input USB/AC Adpater 1-Cell Li-Ion Charger w/Charge Enable & Power Good in QFN-10 Linear Charge Management Li-Ion/Li-Pol Packs 1000mA 4.2V 10Pin VSON EP T/R
Stock Locations:
Availability:
9,189 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.99

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The bqTINY-II series are highly-integrated, flexible Li-Ion linear charge and system power management devices for space-limited charger applications. In a single monolithic device, the bqTINY-II offers integrated USB-port and ac-adapter supply management with autonomous power-source selection, power-FET and current-sensor interfaces, high-accuracy current and voltage regulation, charge status, and charge termination.
FEATURES
• Small 3 mm x 3 mm MLP Package
• Charges and powers Systems from Either AC Adapter or USB With Autonomous power-Source Selection
• Integrated USB Control With Selectable 100 mA and 500 mA Charge Rates
• Ideal for Low-Dropout Charger Designs for Single-Cell Li-Ion or Li-pol Packs in Space Limited portable applications
• Integrated power FET and Current Sensor for Up to 1-A Charge applications From AC Adapter
• Precharge Conditioning With Safety Timer
• power Good (AC Adapter Present) Status Output
• Optional Battery Temperature Monitoring Before and During Charge
• Automatic Sleep Mode for Low-power Consumption
APPLICATIONS
• PDAs, MP3 Players
• Digital Cameras
• Internet appliances
• Smartphones

Show

BQ24022DRCR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	10 Pin
Case/Package	VSON-10
Supply Voltage (DC)	6.50V (max)
Input Voltage (DC)	6.50 V
Output Voltage	4.2 V
Output Current	1000 mA
Number of Positions	10 Position
Output Current (Max)	1 A
Output Current (Min)	50 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.5 V
Supply Voltage (Max)	6.5 V
Input Voltage	6.5 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.9 mm
Operating Temperature	-40℃ ~ 125℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
