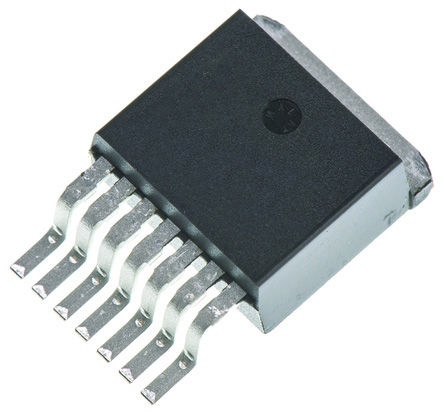

Image is for your reference only,please check specifications for details

BTS621L1 E3128A - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC14558230
Category:
FET Driver
Package:
TO-263-7
Datasheet:
Datasheet 3D Model
Description:
Power Switch Hi Side 2Out 3.5A 0.08Ω Automotive 7Pin(6+Tab) TO-220AB SMD T/R
Stock Locations:
Availability:
295 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.89

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The BTS621L1 E3128A is a dual channel high side Power Switch with integrated vertical power FET, providing embedded protection and diagnostic functions. N channel vertical power FET with charge pump, ground referenced CMOS compatible input and diagnostic feedback, monolithically integrated in Smart SIPMOS technology.
Overload protection
Current limitation
Short-circuit protection
Thermal shutdown
Overvoltage protection (including load dump)
Fast demagnetization of inductive loads
Undervoltage and overvoltage shutdown with auto-restart and hysteresis
Open drain diagnostic output
Open load detection in ON-state
Loss of ground and loss of Vbb protection
Green product
High voltage capability
Benchmark energy robustness

Show

BTS621L1 E3128A Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	7 Pin
Case/Package	TO-263-7
Number of Outputs	2 Output
Input Voltage (DC)	43.0 V
Output Current	3.5 A
Supply Current	4 mA
Number of Positions	7 Position
Power Dissipation	75 W
Output Current (Max)	3.5 A
Output Current (Min)	3.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	75000 mW
Supply Voltage	5V ~ 34V
Input Voltage	43 V
	Show
Size-Length	10 mm
Size-Width	9.25 mm
Size-Height	4.4 mm
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
