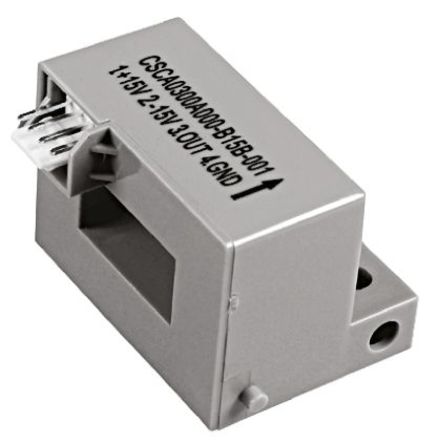

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- **Open Loop Current Sensors**
- The CSCA-A series of open loop current sensors from Honeywell are suitable for applications such as variable speed drives, over current protection, UPS and telecommunication power supplies, current feedback control systems and robotics.The CSCA-A series of open loop current sensors are based on the hall effect principles, a hall effect device produces an output voltage linearly related to the amplitude and phase of a magnetic field applied to it. The hall effect output is directly proportional to the amplitude and phase of the primary current.
CSCA0200A000B15B01 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 4 Pin |
| Case/Package | Module |
| Current Rating | 200 A |
| Supply Current | 17.0 mA |
| Number of Channels | 1 Channel |
| Operating Temperature (Max) | 80 ℃ |
| Operating Temperature (Min) | -10 ℃ |
| Accuracy | ±2 % |
| Supply Voltage | 15 V |
| Show | |
| Size-Length | 40 mm |
| Size-Width | 35 mm |
| Size-Height | 29 mm |
| Operating Temperature | -10℃ ~ 80℃ |
| Housing Material | Polyester |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
