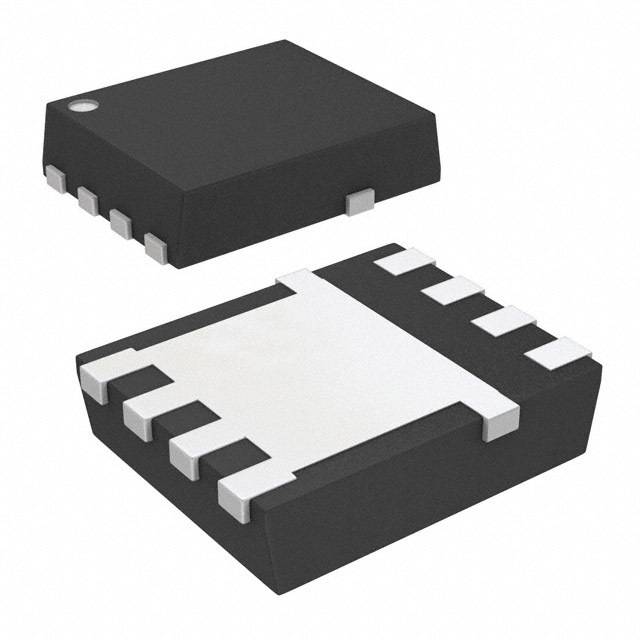

Image is for your reference only,please check specifications for details
Updated at 03/12/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- N-Channel 60V 50A (Ta) 3.1W (Ta), 77W (Tc) Surface Mount 8-VSONP (5x6)
CSD18534Q5AT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | VSONP-8 |
| Number of Channels | 1 Channel |
| Drain to Source Resistance (on) (Rds) | 9.8 mΩ |
| Polarity | N-CH |
| Power Dissipation | 3.1 W |
| Threshold Voltage | 1.5 V |
| Drain to Source Voltage (Vds) | 60 V |
| Breakdown Voltage (Drain to Source) | 60 V |
| Continuous Drain Current (Ids) | 50A |
| Rise Time | 5.5 ns |
| Fall Time | 2 ns |
| Operating Temperature (Max) | 150 ℃ |
| Operating Temperature (Min) | 55 ℃ |
| Show | |
| Size-Length | 6 mm |
| Size-Width | 4.9 mm |
| Size-Height | 1 mm |
| Operating Temperature | -55℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Contains Lead |
