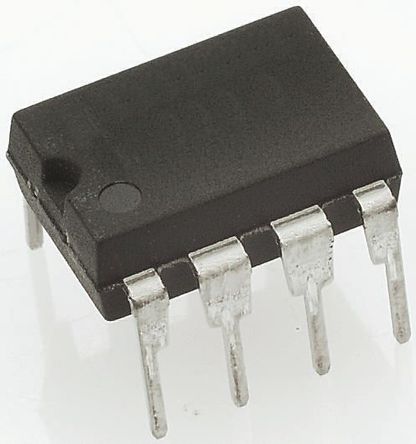

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

DS1232LP+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Supply Voltage (DC)	5.50V (max)
Output Voltage	≤5.00 V
Supply Current	200 µA
Number of Positions	8 Position
Threshold Voltage	4.37 V
Output Current (Max)	10 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	5 V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.5 V
	Show
Size-Length	9.91 mm
Size-Width	7.87 mm
Size-Height	4.45 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
