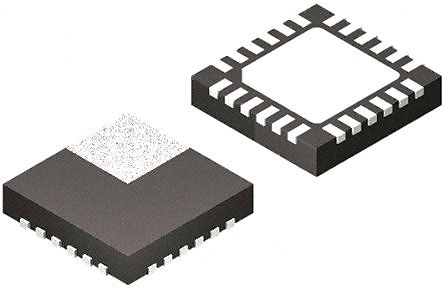

Image is for your reference only,please check specifications for details

HMC521LC4 - ADI
Manufacturer:
ADI
ManyChip's Part#:
MC68511089
Category:
RF Module
Package:
TFQFN-24
Datasheet:
Datasheet 3D Model
Description:
ANALOG DEVICES HMC521LC4 RF GaAs MMIC I/Q Mixer IC, RF/LO Range 8.5GHz to 11.7GHz, HQFN-24
Stock Locations:
Availability:
2 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 37.43

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The HMC521LC4 is a compact GaAs I/Q MMIC Mixer which operates between 8.5 to 13.5GHz. Mixer which can be used as either an image reject mixer or a single sideband up-converter. The mixer utilizes two standard Hittite double balanced mixer cells and a 90 degree hybrid fabricated in a GaAs MESFET process. A low frequency quadrature hybrid was used to produce a 100MHz USB IF output. This product is a much smaller alternative to hybrid style image reject mixers and single sideband up-converter assemblies.
DC to 3.5GHz Wide IF bandwidth
38dB Image rejection
50dB LO to RF isolation
23dBm High input IP3

Show

HMC521LC4 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	TFQFN-24
Frequency	8.5GHz ~ 13.5GHz
Power Rating	0.46 W
Number of Positions	24 Position
Power Dissipation	0.46 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	460 mW
	Show
Size-Length	4 mm
Size-Width	4 mm
Size-Height	1.02 mm
Operating Temperature	-55℃ ~ 85℃
Product Lifecycle Status	End of Life
Packaging	Cut Tape (CT)
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
