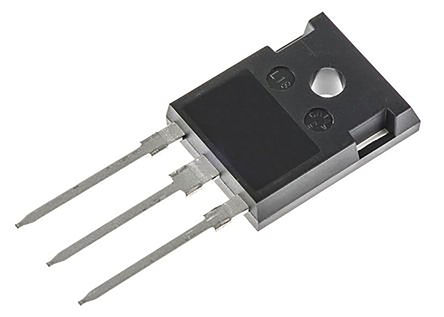

Image is for your reference only,please check specifications for details

IDW40G65C5 - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC68820340
Category:
Schottky Diode
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
INFINEON IDW40G65C5 Silicon Carbide Schottky Diode, SIC, thinQ 5G 650V Series, Single, 650V, 40A, 55NC, TO-247
Stock Locations:
Availability:
245 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 22.52

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The IDW40G65C5 is a SiC Schottky Diode features higher safety margin against overvoltage and complements CoolMOS™ offer, reduced EMI compared to snappier Silicon diode reverse recovery waveform. The 5th generation thinQ!™ compact Schottky diode with thin-wafer technology and it is improves efficiency over all load conditions, resulting from both the improved thermal characteristics and a lower figure of merit (Qc x Vf). The new thinQ!™ generation 5 has been designed to complement 650V CoolMOS™ families, this ensures meeting the most stringent application requirements in this voltage range.
Revolutionary semiconductor material-silicon carbide
Reduced cooling requirements
No reverse recovery/no forward recovery
Temperature independent switching behaviour
High surge current capability
Increased efficiency compared to silicon diode alternatives
Enabling higher frequency/increased power density solutions
Higher system reliability due to lower operating temperatures
Reduced EMI
Reduced risks of thermal runaway

Show

IDW40G65C5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Forward Voltage	1.7 V
Power Dissipation	183 W
Forward Current	40 A
Max Forward Surge Current (Ifsm)	182 A
Maximum Forward Voltage (Max)	2.1 V
Forward Current (Max)	40 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	16.13 mm
Size-Width	5.21 mm
Size-Height	21.1 mm
Operating Temperature	-55℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
