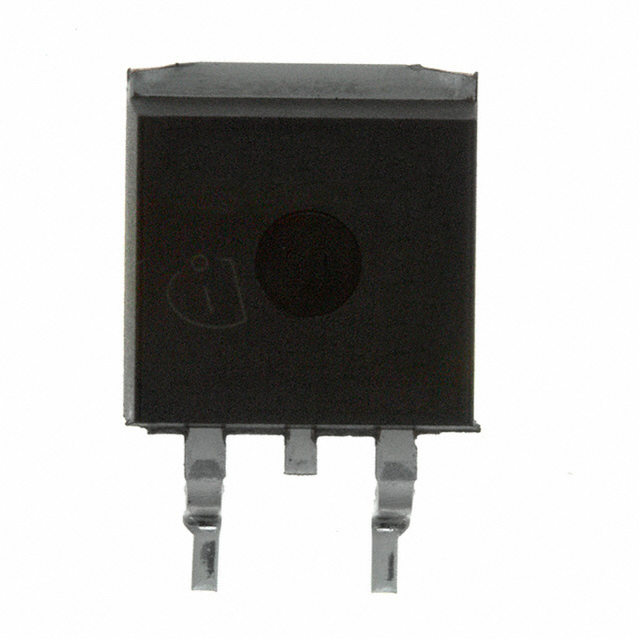

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

IPB09N03LA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-263-3
Voltage Rating (DC)	25.0 V
Current Rating	50.0 A
Polarity	N-CH
Power Dissipation	63W (Tc)
Drain to Source Voltage (Vds)	25 V
Continuous Drain Current (Ids)	50.0 A
Rise Time	88.0 ns
Input Capacitance (Ciss)	1642pF @15V(Vds)
Input Power (Max)	63 W
Power Dissipation (Max)	63W (Tc)
	Show
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Obsolete
Packaging	Tape & Reel (TR)
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
