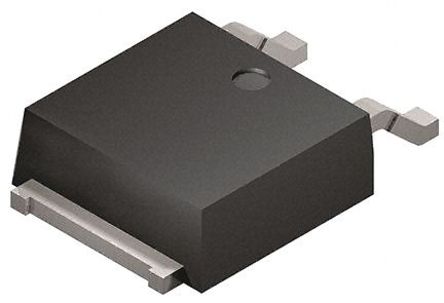

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IPD50R280CE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Polarity	N-Channel
Power Dissipation	119 W
Drain to Source Voltage (Vds)	500 V
Continuous Drain Current (Ids)	13A
Rise Time	6.4 ns
Input Capacitance (Ciss)	773pF @100V(Vds)
Input Power (Max)	92 W
Fall Time	7.6 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	92W (Tc)
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.41 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
