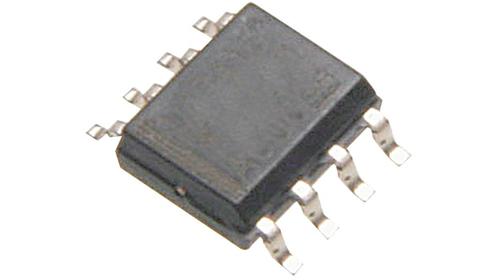

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

IRF7904PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Voltage Rating (DC)	30.0 V
Current Rating	7.60 A
Power Rating	1.4 W
Polarity	Dual N-Channel
Power Dissipation	2.00 W
Part Family	IRF7904
Input Capacitance	1.78 nF
Gate Charge	14.0 nC
Drain to Source Voltage (Vds)	30 V
Continuous Drain Current (Ids)	11.0 A
Rise Time	10.0 ns
Input Capacitance (Ciss)	910pF @15V(Vds)
Input Power (Max)	1.4W, 2W
	Show
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Exempt
REACH SVHC Compliance	No SVHC
