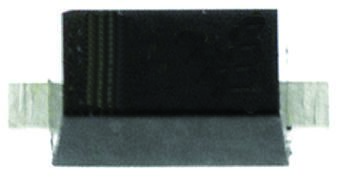

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

KDZTR15B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-123
Capacitance Tolerance	±6 %
Number of Positions	2 Position
Power Dissipation	1 W
Test Current	20 mA
Zener Voltage	15.35 V
Input Power (Max)	1 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000 mW
	Show
Size-Length	2.6 mm
Size-Width	1.6 mm
Size-Height	0.8 mm
Operating Temperature	-55℃ ~ 150℃
Temperature Coefficient	11.8 mV/℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
