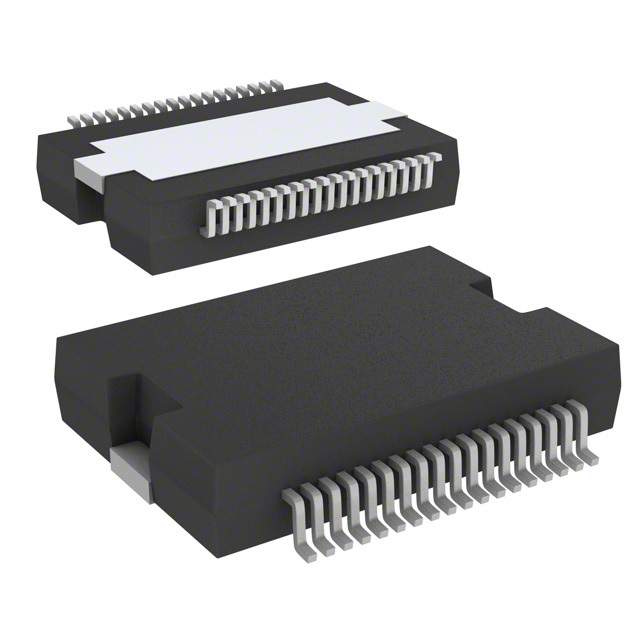

Image is for your reference only,please check specifications for details
- L6470PDTR - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC8034564
-
Category:Motor Driver
-
Package:PowerSO-36
-
Datasheet:Datasheet 3D Model
-
Description:Microstepping Motor Driver 3.3V 36Pin PowerSO T/R
-
Stock Locations:
-
Availability:216 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 13.08
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- * Operating voltage: 8 - 45 V * 7.0 A out peak current (3.0 A r.m.s.) * Low RDS(on)Power MOSFETs * Programmable speed profile and positioning * Programmable power MOS slew rate * Up to 1/128 microstepping * Sensorless stall detection * SPI interface * Low quiescent and standby currents * Programmable non-dissipative overcurrent protection on high and low-side * Two-levels of overtemperature protection
L6470PDTR Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 36 Pin |
| Case/Package | PowerSO-36 |
| Number of Outputs | 1 Output |
| Output Voltage | 45 V |
| Output Current | 3 A |
| Number of Positions | 36 Position |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage | 3.3V, 5V |
| Supply Voltage (Max) | 3.3 V |
| Show | |
| Operating Temperature | -40℃ ~ 150℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | Compliant with Exemption |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
