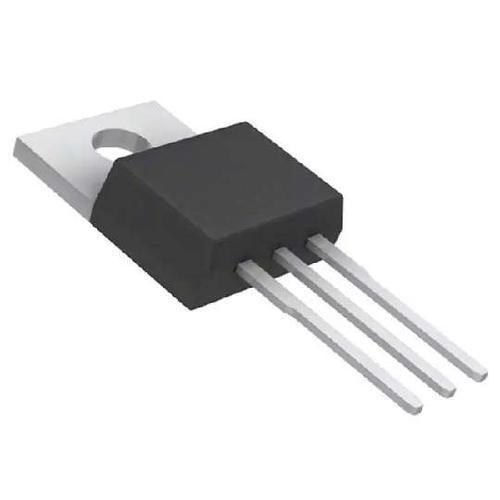

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The LM237KCSE3 is an adjustable 3-terminal Negative-Voltage Regulator capable of supplying in excess of -1.5A over an output voltage range of -1.2 to -37V. It requires only two external resistors to set the output voltage and one output capacitor for frequency compensation. It is exceptionally easy to use, requiring only two external resistors to set the output voltage and one output capacitor for frequency compensation. The current design is optimized for excellent regulation and low thermal transients. In addition, it features internal current limiting, thermal shutdown and safe-area compensation, making it virtually immune to failure by overloads. The device serves a wide variety of applications, including local on-card regulation, programmable output-voltage regulation and precision current regulation.
Peak output current constant overtemperature range of regulator
Input regulation typically 0.01% per input-voltage change
0.3% Typically output regulation
77dB Typically ripple rejection

Show

LM237KCSE3 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Number of Outputs	1 Output
Input Voltage (DC)	-40.0 V (max)
Output Voltage	-37.0 V (max), -1.20 V (min)
Output Current	1.5 A
Number of Positions	3 Position
Quiescent Current	65.0 µA
Output Capacitor Type	Capacitor Free
voltage rating	2.00 V
Number of Regulated Outputs	1 Output
Output Current (Max)	1.5 A
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-25 ℃
	Show
Size-Length	10.16 mm
Size-Width	4.58 mm
Size-Height	8.7 mm
Operating Temperature	-25℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
