Description

General Description
Maxim’s MAX312/MAX313/MAX314 analog switches feature low on-resistance (10Ωmax) and 1.5Ωon-resis tance matching between channels. These switches conduct equally well in either direction. They offer low leakage over temperature (2.5nA at +85°C). Low power consumption and ESD tolerance greater than 2000V per Method 3015.7 are guaranteed. The MAX312/MAX313/MAX314 are quad, single pole/single-throw (SPST) analog switches. The MAX312 is normally closed (NC), and the MAX313 is normally open (NO). The MAX314 has two NC switches and two
NO switches. All three devices operate from a single supply of +4.5V to +30V or from dual supplies of ±4.5V to ±20V.
Features
♦Pin Compatible with DG411/DG412/DG413
♦Low On-Resistance (6.5Ωtypical)
♦Guaranteed RONMatch Between Channels (1.5Ωmax)
♦Guaranteed RONFlatness over Specified Signal Range (2Ωmax)
♦Guaranteed ESD Protection > 2000V per Method 3015.7
♦Crosstalk > 96dB at 20kHz
♦Single-Supply Operation: +4.5V to +30V
Dual-Supply Operation: ±4.5V to ±20V
♦Rail-to-Rail Signal Handling

Show

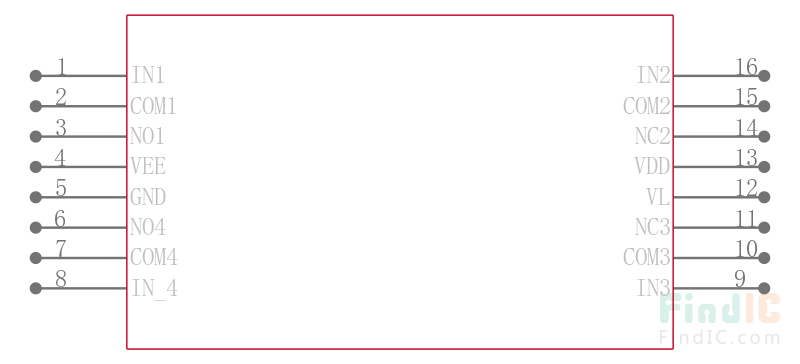

MAX314CSE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC
Contacts Type	SPST
Number of Channels	4 Channel
Drain to Source Resistance (on) (Rds)	10.0 Ω
	Show
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
