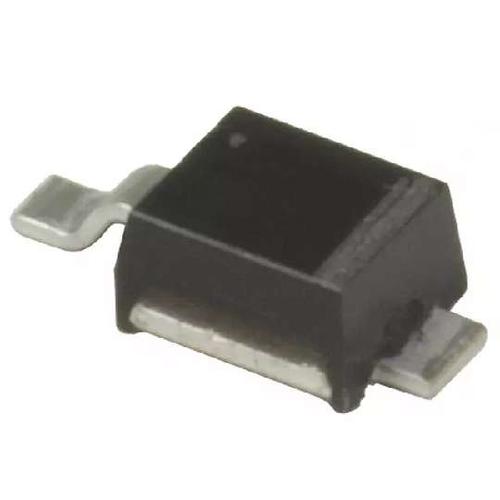

Image is for your reference only,please check specifications for details

MBRM1H100T3G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC73129600
Category:
Schottky Diode
Package:
DO-216AA
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MBRM1H100T3G Schottky Rectifier, 100V, 1A, Single, DO-216AA, 2Pins, 840mV
Stock Locations:
Availability:
0 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MBRM1H100T3G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	DO-216AA
Halogen Free Status	Halogen Free
Number of Positions	2 Position
Forward Voltage	760mV @1A
Forward Current	1 A
Max Forward Surge Current (Ifsm)	50 A
Maximum Forward Voltage (Max)	840 mV
Forward Current (Max)	1000 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	Show
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
