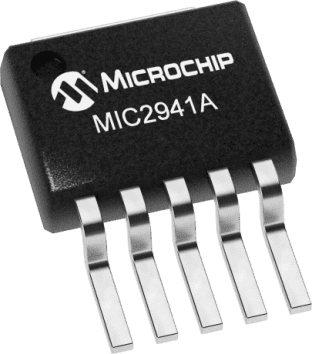

Image is for your reference only,please check specifications for details

MIC2941AWU - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC22652900
Category:
Voltage Regulator
Package:
TO-263-5
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP MIC2941AWU LDO Voltage Regulator, Adjustable, 2V to 26V input, 350mV drop., 1.24V to 26V/1.25A out, TO-263-5
Stock Locations:
Availability:
227 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.87

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MIC2941AWU Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-5
Operating Voltage	2V ~ 26V
Number of Outputs	1 Output
Output Voltage	1.24V ~ 26V
Output Current	1.25 A
Number of Positions	5 Position
Quiescent Current	240 µA
voltage rating	350 mV
Input Voltage (Max)	26 V
Input Voltage (Min)	2 V
Output Voltage (Max)	26 V
Output Voltage (Min)	1.24 V
Output Current (Max)	1.25 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	26 V
	Show
Size-Length	10.67 mm
Size-Width	9.17 mm
Size-Height	4.59 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
