MIC37302WR Microchip Technology Incorporated - Voltage Regulators

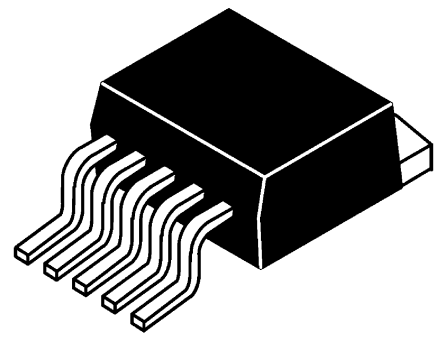

Image is for your reference only,please check specifications for details

MIC37302WR - Microchip Technology Incorporated
Manufacturer:
Microchip Technology Incorporated
ManyChip's Part#:
MC20631089
Category:
Voltage Regulators
Package:
S-PAK-5
Datasheet:
Datasheet 3D Model
Description:
MICROCHIP MIC37302WR – LDO регулятор напряжения с регулируемым выходным напряжением. Входное напряжение: от 2,25 В до 6 В; потеря напряжения: 0,3 В. Выходное напряжение: от 1,24 В до 5,5 В при токе 3 А. Корпус типа S-PAK-5.
Stock Locations:
Availability:
224 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 8.12

Updated at 31/10/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	S-PAK-5
Number of Outputs	1 Output
Output Voltage	1.24V ~ 5.5V
Output Current	3 A
Number of Positions	5 Position
Quiescent Current	27 mA
voltage rating	300 mV
Input Voltage (Max)	6 V
Input Voltage (Min)	2.25 V
Output Voltage (Max)	5.5 V
Output Voltage (Min)	1.24 V
Output Current (Max)	3 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1 %
Input Voltage	2.25V ~ 6V
	Show
Size-Length	9.52 mm
Size-Width	8.13 mm
Size-Height	2.03 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
