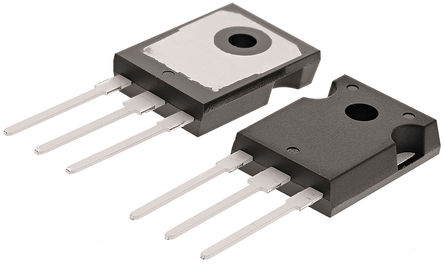

Image is for your reference only,please check specifications for details

MUR3060WTG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC3511540
Category:
Diode Array, TVS Diode Array
Package:
TO-247-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MUR3060WTG Fast / Ultrafast Power Diode, 600V, 30A, Dual Common Cathode, 1.7V, 60ns, 150A
Stock Locations:
Availability:
296 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.99

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MUR3060WTG is a SWITCHMODE™ Power Rectifier with moulded epoxy case. This state-of-the-art device is design for use in switching power supplies, inverters and as free-wheeling diodes.
All external surfaces corrosion-resistant and terminal leads are readily solderable
High voltage capability
Low forward drop
Low leakage
Current derating at both case and ambient temperatures
High temperature glass-passivated junction
UL94V-0 Flammability rating

Show

MUR3060WTG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-247-3
Voltage Rating (DC)	600 V
Current Rating	30.0 A
Forward Voltage	1.7 V
Thermal Resistance	40 ℃/W
Reverse recovery time	60 ns
Forward Current	30 A
Max Forward Surge Current (Ifsm)	150 A
Maximum Forward Voltage (Max)	1.7 V
Forward Current (Max)	30 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	16.26 mm
Size-Width	5.3 mm
Size-Height	21.08 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
