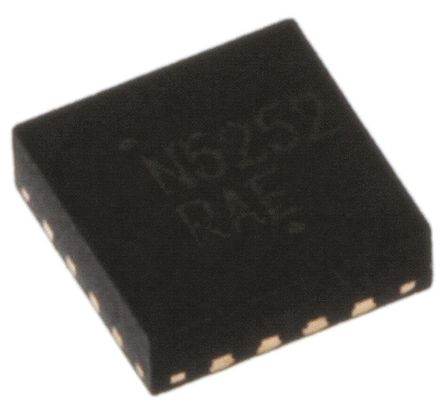

Image is for your reference only,please check specifications for details
- NCP5252MNTXG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC47366696
-
Category:DC to DC Converter
-
Package:QFN-16
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 4.5V to 13.2V Step Down Single-Out 0.6V to 5V 2A 16Pin QFN EP T/R
-
Stock Locations:
-
Availability:9,277 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.76
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Adjust the voltage level of your devices with this step down NCP5252MNTXG DC to DC converter from ON Semiconductor. This converter"s single output can produce a current up to 2 A. By only needing an input voltage of 4.5 V with a maximum of 13.2 V, this is the best way to control the power in your circuit. With an adjustable output that has a voltage of 0.6 to 5 V, this is power management at its best. By operating at a line regulation of 0.1%/V you can provide a constant voltage at your output. It has a switching frequency of 300 to 1100 kHz. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This converter has a minimum operating temperature of -40 °C and a maximum of 150 °C.
NCP5252MNTXG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | QFN-16 |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 1 Output |
| Output Voltage | 0.6V ~ 5V |
| Output Current | 2 A |
| Number of Positions | 16 Position |
| Switching Frequency | 333kHz ~ 1MHz |
| Topology | Step-Down |
| Input Voltage (Max) | 13.2 V |
| Input Voltage (Min) | 4.5 V |
| Output Voltage (Max) | 5 V |
| Output Voltage (Min) | 0.6 V |
| Output Current (Max) | 2 A |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Input Voltage | 4.5V ~ 13.2V |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 3 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
