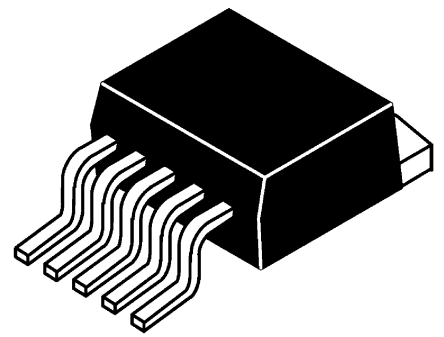

Image is for your reference only,please check specifications for details

NCP565D2TG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC28126726
Category:
Voltage Regulator
Package:
TO-263-6
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCP565D2TG LDO Voltage Regulator, Adjustable, 2.5V to 9V in, 900mV drop, 900mV to 7.7V/1.5A out, TO-263-5
Stock Locations:
Availability:
3,859 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.64

Updated at 25/10/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCP565D2TG is a low-dropout Linear Regulator will provide 1.5A at an adjustable voltage down to 0.9V. The fast loop response and low-dropout voltage make this regulator ideal for applications where low voltage and good load transient response are important. Device protection includes current limit, short circuit protection and thermal shutdown.
Thermal shutdown protection
Current limit protection
1µs Ultra fast transient response

Show

NCP565D2TG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TO-263-6
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Output Voltage	0.9V ~ 7.7V
Output Current	1.5 A
Number of Positions	5 Position
Polarity	P-Channel
voltage rating	900 mV
Input Voltage (Max)	9 V
Input Voltage (Min)	2.5 V
Output Voltage (Max)	7.7 V
Output Voltage (Min)	900 mV
Output Current (Max)	1.5 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±3 %
Input Voltage	2.5V ~ 9V
	Show
Size-Length	10.24 mm
Size-Width	9.35 mm
Size-Height	4.57 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
