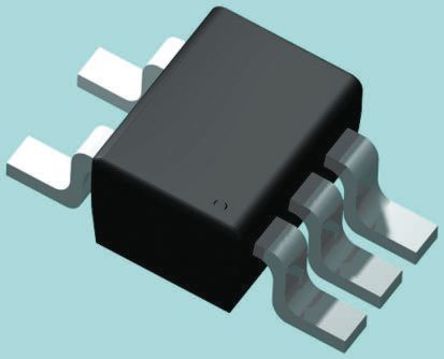

Image is for your reference only,please check specifications for details

NCV551SN33T1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC20228946
Category:
Voltage Regulator
Package:
TSOT-23-5
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NCV551SN33T1G Fixed LDO Voltage Regulator, 4.3V to 12V, 40mV Dropout, 3.3Vout, 150mAout, TSOP-5
Stock Locations:
Availability:
10,296 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.34

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The NCV551SN33T1G is a fixed output low-dropout Voltage Regulator features an ultra-low quiescent current of 4A. This device contains a voltage reference unit, an error amplifier and a PMOS power transistor, resistors for setting output voltage, current limit and temperature limit protection circuits. It has been designed to be used with ceramic capacitors and requires a minimum output capacitor of 0.1µF.
Low output voltage option
High accuracy output voltage of 2%
-40 to 85°C Industrial temperature range

Show

NCV551SN33T1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	TSOT-23-5
Number of Outputs	1 Output
Output Voltage	3.3 V
Output Current	150 mA
Number of Positions	5 Position
Quiescent Current	8 µA
voltage rating	40 mV
Input Voltage (Max)	12 V
Input Voltage (Min)	0 V
Output Current (Max)	150 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	≤12 V
	Show
Size-Length	3 mm
Size-Width	1.5 mm
Size-Height	1 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
HK STC License	NLR
