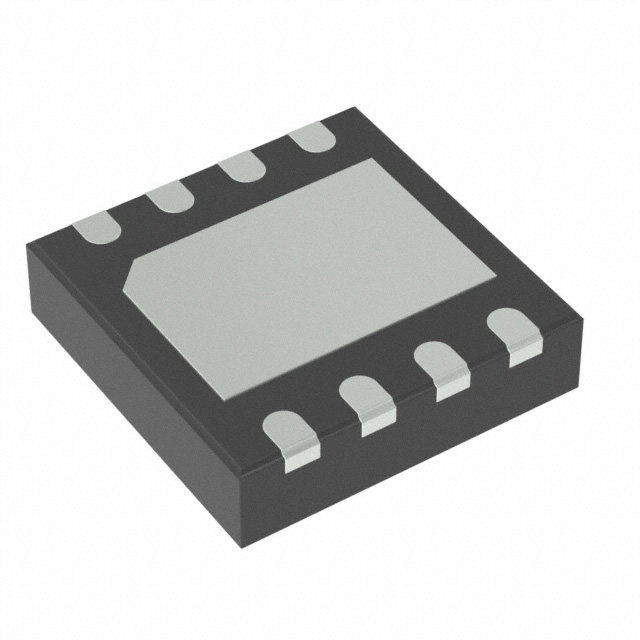

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NCV8705 is a low noise, low power consumption and low dropout Linear Voltage Regulator. With its excellent noise and PSRR specifications, the device is ideal for use in products utilizing RF receivers, imaging sensors, audio processors or any component requiring an extremely clean power supply. The NCV8705 uses an innovative Adaptive Ground Current circuit to ensure ultra low ground current during light load conditions.
- Features
- ---
- |
- Operating Input Voltage Range: 2.5 V to 5.5 V
- Ultra-Low Quiescent Current of Typ. 13 uA
- Very Low Dropout: 230 mV Typical at 500 mA
- High PSRR: 71 dB at 1 kHz
- Available in Fixed Voltage Output Options: 0.8 V to 3.5 V
- Ultra-Low Noise: 12 uVrms from 100 Hz to 100 KHz
- AEC-Q100 Qualified and PPAP Capable
- Adjustable Operation from 0.8V
NCV8705ML33TCG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | DFNW-8 |
| Number of Outputs | 1 Output |
| Output Voltage | 3.3 V |
| Output Current | 500 mA |
| voltage rating | 0.23V @500mA |
| Input Voltage (Max) | 5.5 V |
| Input Voltage (Min) | 2.2 V |
| Output Voltage (Min) | 3.3 V |
| Output Current (Max) | 0.5 A |
| Operating Temperature (Max) | 125 ℃ |
| Accuracy | ±2 % |
| Input Voltage | 5.5 V |
| Show | |
| Operating Temperature | 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
