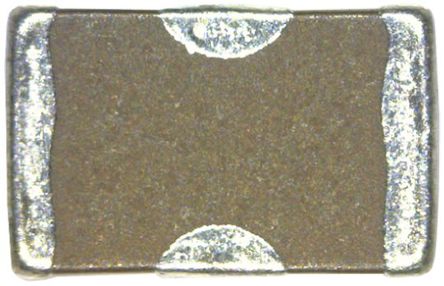

Image is for your reference only,please check specifications for details
- NFL21SP506X1C3D - muRata
-
Manufacturer:muRata
-
ManyChip's Part#:MC9962746
-
Category:RFI Shielding
-
Package:0805
-
Datasheet:Datasheet 3D Model
-
Description:LC (П-образный) ЭМИ-фильтр, 3-го порядка, фильтр нижних частот, 1 канал, L = 305нГн, C = 84пФ, 150мА, корпус 0805 (метрический 2012), 3 контактные площадки
-
Stock Locations:
-
Availability:9,900 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.52
Updated at 16/09/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- NFL21SP506X1C3D — это сетевой помехоподавляющий фильтр, который подавляет шумы при минимальном ослаблении самого сигнала благодаря своим крутым фильтрующим характеристикам. Высокоэффективный фильтр подавления ЭМП, предназначенный для скоростных линий передачи сигналов, изготовленный с использованием технологий обработки компании Murata. Подходит для подавления мощного излучаемого шума, генерируемого высокоскоростными цифровыми схемами, такими как тактовые генераторы и схемы RGB.
- Соответствует требованиям REACH
- Минимальное сопротивление изоляции 1000 МОм
- Комбинированные LC-фильтры (многослойного типа)
- Диапазон рабочих температур от -55 до 125 °C
NFL21SP506X1C3D Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package (SI) | 2012 |
| Case/Package | 0805 |
| Voltage Rating (DC) | 16.0 V |
| Current Rating | 150 mA |
| Capacitance | 84 pF |
| Capacitance Tolerance | ±20 % |
| Number of Channels | 1 Channel |
| Inductance | 305 nH |
| Shielding | No |
| Current Rating (Max) | 0.15 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating (Max) | 16 VDC |
| Voltage Rating | 16 VDC |
| Show | |
| Size-Length | 2 mm |
| Size-Width | 1.25 mm |
| Size-Height | 0.85 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
