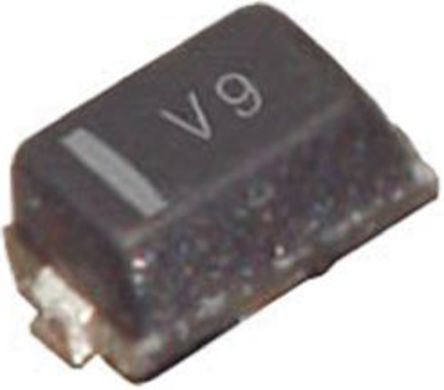

NSR0170P2T5G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC29212433
Category:
Schottky Diode
Package:
SOD-923
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR NSR0170P2T5G Small Signal Schottky Diode, Single, 70V, 70mA, 640mV, 70mA, 150℃
Stock Locations:
Availability:
241 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.05

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NSR0170P2T5G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	2 Pin
Case/Package	SOD-923
Number of Positions	2 Position
Forward Voltage	730mV @15mA
Power Dissipation	710 mW
Thermal Resistance	520℃/W (RθJA)
Forward Current	70 mA
Max Forward Surge Current (Ifsm)	70 mA
Maximum Forward Voltage (Max)	730 mV
Forward Current (Max)	70 mA
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	710 mW
	Show
Size-Length	0.85 mm
Size-Width	0.65 mm
Size-Height	0.41 mm
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
