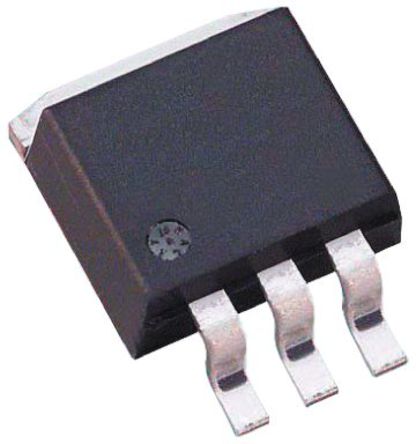

Image is for your reference only,please check specifications for details

Updated at 24/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

NTD5406NT4G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-252-3
Voltage Rating (DC)	40.0 V
Current Rating	70.0 A
Drain to Source Resistance (on) (Rds)	10.0 mΩ
Polarity	N-Channel
Power Dissipation	3W (Ta), 100W (Tc)
Input Capacitance	2.50 nF
Gate Charge	45.0 nC
Drain to Source Voltage (Vds)	40 V
Breakdown Voltage (Drain to Source)	40.0 V
Breakdown Voltage (Gate to Source)	±20.0 V
Continuous Drain Current (Ids)	70.0 A
Input Capacitance (Ciss)	1375pF @32V(Vds)
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	3W (Ta), 100W (Tc)
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-55℃ ~ 175℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
