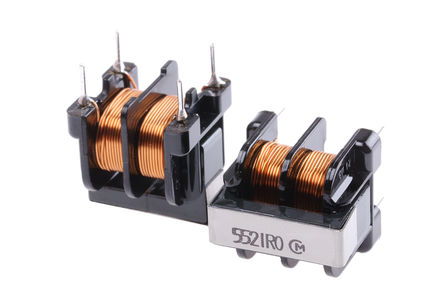

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

PLA10AN5521R0R2B Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	Through Hole
Voltage Rating (DC)	300 V
Voltage Rating (AC)	300 V
Current Rating	1 A
Insulation Resistance	100 MΩ
Inductance	5.5 mH
Resistance	460 mΩ
Shielding	No
Current Rating (Max)	1 A
Current Rating (DC)	1 A
Operating Temperature (Max)	60 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	300 VAC
Resistance (DC Max)	460 mΩ
	Show
Size-Length	18 mm
Size-Width	16 mm
Size-Height	17.5 mm
Operating Temperature	-25℃ ~ 60℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
