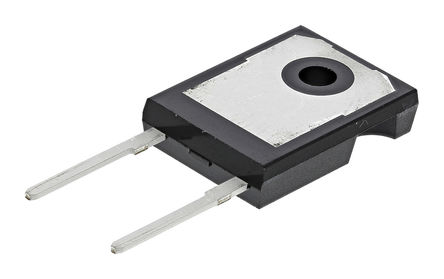

Image is for your reference only,please check specifications for details

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The RHRG5060 is a Hyperfast Diode offers soft recovery characteristics. It has the half recovery time of Ultrafast diodes and is silicon nitride passivated ion-implanted epitaxial planar construction. It is intended to be used as freewheeling/clamping diodes and diodes in a variety of switching power supplies and other power switching applications. Its low-stored charge and Hyperfast soft recovery minimize ringing and electrical noise in many power switching circuits reducing power loss in the switching transistors.
50ns at IF=50A Hyperfast recovery
High reliability
Avalanche energy rated

Show

RHRG5060 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-247-2
Voltage Rating (DC)	600 V
Current Rating	50.0 A
Capacitance	140 pF
Output Current	≤50.0 A
Forward Voltage	2.1V @50A
Polarity	Standard
Thermal Resistance	1℃/W (RθJC)
Reverse recovery time	50 ns
Forward Current	50 A
Max Forward Surge Current (Ifsm)	500 A
Maximum Forward Voltage (Max)	2.1 V
Forward Current (Max)	50 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	15.8 mm
Size-Width	4.82 mm
Size-Height	20.8 mm
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
