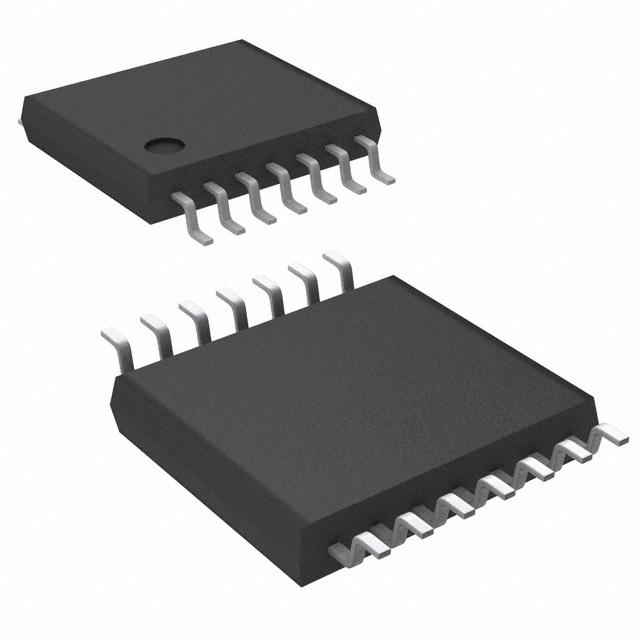

SN74CB3T3125PWR - TI
Manufacturer:
TI
ManyChip's Part#:
MC15465539
Category:
Logic Controller, Logic IC
Package:
TSSOP-14
Datasheet:
Datasheet 3D Model
Description:
3.3V Low-Voltage Quadruple FET Bus Switch with 5V Tolerant Level Shifter 14-TSSOP -40℃ to 85℃
Stock Locations:
Availability:
221 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.02

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74CB3T3125PWR is a high-speed TTL-compatible FET Bus Switch with low ON-state resistance (ron), allowing for minimal propagation delay. The device fully supports mixed-mode signal operation on all data I/O ports by providing voltage translation that tracks VCC. It supports systems using 5V TTL, 3.3V LVTTL and 2.5V CMOS switching standards, as well as user-defined switching levels. It is organized as four 1-bit bus switches with separate OE (1OE\, 2OE\, 3OE\, 4OE\\) inputs. It can be used as four 1-bit bus switches or as one 4-bit bus switch. When OE\ is low, the associated 1-bit bus switch is ON and the A port is connected to the B port, allowing bidirectional data flow between ports. When OE\ is high, the associated 1-bit bus switch is OFF and the high-impedance state exists between the A and B ports. This device is fully specified for partial-power-down applications using Ioff.
Output voltage translation tracks VCC
Supports mixed-mode signal operation on all data i/o ports
Bidirectional data flow, with near-zero propagation delay
Low ON-state resistance (ron) characteristics ron = 5R typical)
Low input/output capacitance minimizes loading (Cio(OFF) = 4.5pF typical)
Data and control inputs provide undershoot clamp diodes
Low power consumption (ICC = 20µA maximum)
Ioff Supports partial-power-down mode operation
Latch-up performance exceeds 250mA per JESD 17
Green product and no Sb/Br

Show

SN74CB3T3125PWR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Supply Voltage (DC)	2.30V (min)
Input Voltage (DC)	1.70 V
Output Voltage	5.5 V
Output Current	64 A
Contacts Type	SPST
Number of Positions	14 Position
Drain to Source Resistance (on) (Rds)	8 Ω
Number of Bits	4 Bit
Propagation Delay Max (tpd)	250 ps
Polarity	Non-Inverting
Bandwidth	100 MHz
Number of Inputs	4 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.3V ~ 3.6V
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	2.3 V
Input Voltage	1.7 V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
