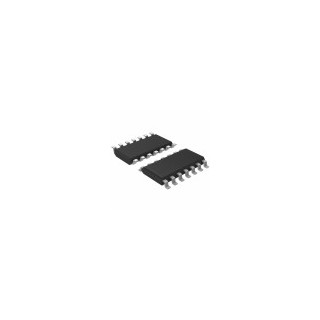

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SNx4HC138 devices are designed to be used in high-performance memory-decoding or data-routing applications requiring very short propagation delay times. In high-performance memory systems, these decoders can be used to minimize the effects of system decoding. When employed with high-speed memories using a fast enable circuit, the delay times of these decoders and the enable time of the memory are usually less than the typical access time of the memory. This means that the effective system delay introduced by the decoders is negligible.
Targeted Specifically for High-Speed Memory Decoders and Data-Transmission Systems
Wide Operating Voltage Range (2 V to 6 V)
Outputs Can Drive Up To 10 LSTTL Loads
Low Power Consumption, 80-µA Maximum ICC
Typical tpd = 15 ns
±4-mA Output Drive at 5 V
Low Input Current of 1-µA Maximum
Active Low Outputs ( Selected Output is Low)
Incorporate Three Enable Inputs to Simplify Cascading or Data Reception

Show

SN74HC138 Specifications
