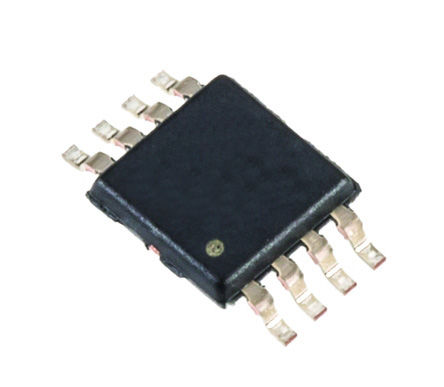

SN74LVC3G04DCUR - TI
Manufacturer:
TI
ManyChip's Part#:
MC6347826
Category:
Logic Control, Logic Gate IC
Package:
VSSOP-8
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS SN74LVC3G04DCUR Inverter, 74LVC3G04, 1Input, 32mA, 1.65V to 5.5V, VSSOP-8
Stock Locations:
Availability:
492 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.4

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The SN74LVC3G04DCUR is a triple Inverter Gate designed for 1.65 to 5.5V VCC operation. The device performs the Boolean function Y = A\\. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
Supports 5V VCC operation
Inputs accept voltages to 5.5V
Maximum tpd of 4.1ns at 3.3V
10µA Maximum ICC low power consumption
±24mA Output drive at 3.3V
Ioff supports live insertion
Partial-power-down mode
Back-drive protection
Can be used as a down translator
Latch-up performance exceeds 100mA per JESD 78, Class II
ESD protection exceeds JESD 22
Green product and no Sb/Br

Show

SN74LVC3G04DCUR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSSOP-8
Supply Voltage (DC)	5.00 V
Output Current	32 mA
Number of Circuits	3 Circuit
Number of Channels	3 Channel
Number of Positions	8 Position
Number of Bits	3 Bit
Propagation Delay Max (tpd)	3.20 ns
Number of Gates	3 Gate
Number of Inputs	1 Input
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.65V ~ 5.5V
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	1.65 V
	Show
Size-Length	2.3 mm
Size-Width	2 mm
Size-Height	0.85 mm
Weight	0.0001537678236 kg
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
