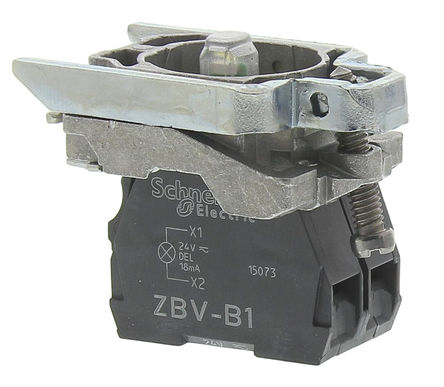

Image is for your reference only,please check specifications for details

ZB4BW0B11 - Schneider Electric
Manufacturer:
Schneider Electric
ManyChip's Part#:
MC100823038
Category:
Pushbutton Switch, Switch Push button
Package:
-
Datasheet:
Datasheet 3D Model
Description:
Electric XB4 Contact & Light Block 1NO LED White 24V AC-DC Screw terminal
Stock Locations:
Availability:
248 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.62

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZB4BW0B11 is a white Light Block for Harmony XB4 metal push buttons. It has 1 NO slow-break silver alloy (Ag/Ni) contacts block and Zamak body/fixing collar with a 24V integral LED.
Screw clamp terminal connection
Steady signalling type
Class I conforming to IEC 60536 protection against electric shock
5000000 Cycles mechanical durability
-25 to 70°C Ambient air operation temperature range

Show

ZB4BW0B11 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Screw
Case/Package	-
Current Rating	10 A
Contacts Type	SPST-NO
Forward Voltage	24.0 V
Number of Bits	1 Bit
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-25 ℃
Voltage Rating	24VAC, 24VDC
	Show
Color	White
RoHS	Non-Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
