Description

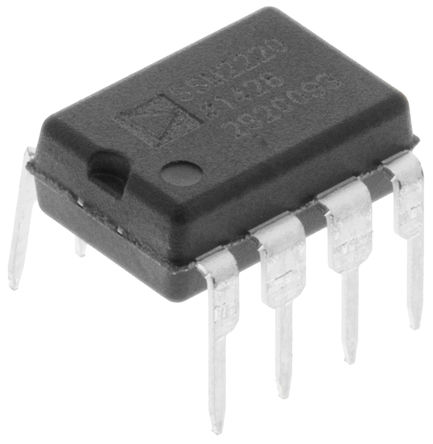

The SSM2220PZ from Analog Devices is a through hole, audio dual matched PNP transistor in PDIP package. This device features low noise, high bandwidth and low offset voltage which makes transistor an ideal choice for low noise preamplification. It offers excellent matching of the current gain which helps to reduce the high order amplifier harmonic distortion. Internal protection diodes are used to clamp reverse base to emitter junction potential to ensure the long term stability of the matching parameters. This prevents base to emitter breakdown condition which can result in degradation of gain and matching performance due to excessive breakdown current.
Very low bulk resistance of typically 0.3ohm
Low voltage noise at 100Hz is 1nV/√Hz maximum
High gain bandwidth typically 190MHz
Gain typically 165 at 1mA collector current
Low offset voltage of maximum 200 µV
Operating temperature range -40°C to 85°C
Collector to emitter breakdown voltage of -36V

Show

SSM2220PZ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	DIP-8
Voltage Rating (DC)	-36.0 V
Current Rating	-36.0 A
Number of Positions	8 Position
Polarity	PNP
Breakdown Voltage (Collector to Emitter)	36 V
Continuous Collector Current	0.02A
hFE Min	60
DC Current Gain (hFE)	165
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	9.27 mm
Size-Width	7.24 mm
Size-Height	3.43 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	End of Life
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
