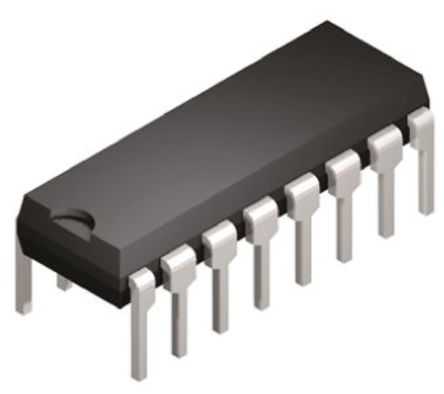

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ST62T01CB6 is a 8-bit HCMOS Microcontroller, which is targeted at low to medium complexity applications. All ST62xx devices are based on a building block approach, a common core is surrounded by a number of on-chip peripherals. OTP devices offer all the advantages of user programmability which make them the ideal choice in a wide range of applications where frequent code changes, multiple code versions or last minute programmability are required.
Enhanced reset system
Low voltage detector (LVD) for safe reset
Crystal/Ceramic resonator or RC network, external clock, backup oscillator (LFAO)
Oscillator safeguard (OSG)
2 Power saving modes - wait and stop
4 Interrupt vectors plus NMI and RESET
9 External interrupt lines (on 2 vectors)
9 Multifunctional bidirectional I/O lines
4 Alternate function lines
3 High sink outputs (20mA)
Configurable watchdog timer
8-bit Timer/counter with a 7-bit prescaler
8-bit ADC with 4 input channels
8-bit Data manipulation
40 Basic instructions
9 Addressing modes

Show

ST62T01CB6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	16 Pin
Case/Package	DIP-16
Frequency	8 MHz
Supply Voltage (DC)	5.00 V, 6.00 V (max)
Number of Positions	16 Position
Clock Speed	8 MHz
RAM Memory Size	64 b
Number of Bits	8 Bit
Power Dissipation	500 mW
FLASH Memory Size	2 KB
Number of I/O Pins	9 IO
Access Time	8.00 µs
Memory Size	2000 B
Number of ADCs	1 ADC
Number of Inputs and Outputs	9 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	500 mW
Supply Voltage	3.6 VDC
Supply Voltage (Max)	6 V
Supply Voltage (Min)	3 V
	Show
Size-Length	20 mm
Size-Width	7.1 mm
Size-Height	5.1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
