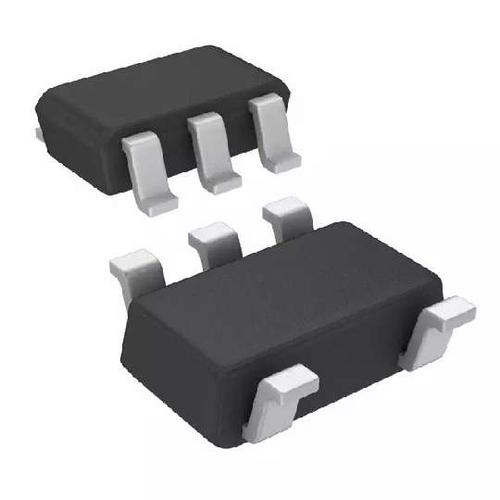

Image is for your reference only,please check specifications for details
- STM1831L24WY6F - ST Microelectronics
-
Manufacturer:ST Microelectronics
-
ManyChip's Part#:MC11656618
-
Category:Power Monitor
-
Package:SOT-23-5
-
Datasheet:Datasheet 3D Model
-
Description:STM1831 Series 2.4V 35mA Open Drain Output Voltage Detector - SOT23-5
-
Stock Locations:
-
Availability:314 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.19
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The STM1831 is a voltage detector with very low current consumption. It monitors a voltage on a separate input pin (VSEN), which is fully functional even if the monitored voltage goes down to 0 V. In addition, the delay of the output can be adjusted by an external capacitor.
- **Key Features**
- Voltage monitored on separate sense input VSEN
- Factory-trimmed voltage thresholds in 100 mV increments from 1.6 V to 5.7 V
- ±2% voltage threshold accuracy
- Operating voltage 1.6 V to 6.0 V
- Open drain output
- Low supply current of 0.8 μA (typ.)
- Time delay programmable by external capacitor
- Power supply transient immunity
- Available in SOT23-5 package
- Operating temperature –40 to 85 °C
STM1831L24WY6F Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 5 Pin |
| Case/Package | SOT-23-5 |
| Supply Current | 0.002 mA |
| Number of Positions | 5 Position |
| Threshold Voltage | 2.4 V |
| Reset Threshold Voltage (Min) | 2.352 V |
| Reset Threshold Voltage (Max) | 2.448 V |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 1.6V ~ 6V |
| Supply Voltage (Max) | 6 V |
| Supply Voltage (Min) | 1.6 V |
| Show | |
| Size-Height | 1.15 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
