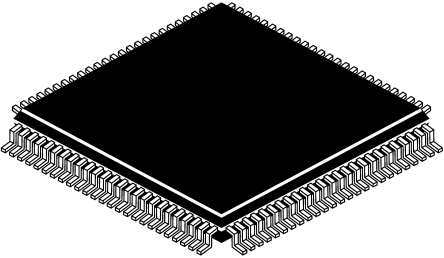

Image is for your reference only,please check specifications for details

STM32F401VBT6 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC10809923
Category:
Microcontroller, MCU IC
Package:
LQFP-100
Datasheet:
Datasheet 3D Model
Description:
MCU 32Bit ARM Cortex M4 RISC 128KB Flash 1.8V/2.5V/3.3V 100Pin LQFP Tray
Stock Locations:
Availability:
275 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 4.95

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STM32F401VBT6 is a STM32 F4 series 32-bit Microcontroller based on the high-performance ARM Cortex-M4 RISC core operating at a frequency of up to 84MHz. Its Cortex-M4 core features a floating point unit (FPU) single precision which supports all ARM single precision data-processing instructions and data types. It also implements a full set of DSP instructions and a memory protection unit (MPU) which enhances application security. The device incorporate high-speed embedded memories (up to 128kB of Flash memory, up to 64kB of SRAM) and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses and a 32-bit multi-AHB bus matrix. This device offer one 12-bit ADC, a low-power RTC, six general-purpose 16-bit timers including one PWM timer for motor control, two general-purpose 32-bit timers, as well as standard communication interfaces - up to three I²Cs, four SPIs, two I²Ss and three USARTs.
105 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1)
4 to 26MHz Crystal oscillator
Internal 16MHz factory-trimmed RC
32kHz Oscillator for RTC with calibration
Internal 32kHz RC with calibration
16-stream DMA Controller with FIFOs and burst support
Serial wire debug (SWD) and JTAG interfaces
Cortex-M4 Embedded Trace Macrocell™
SDIO interface
USB 2.0 full speed device/host/OTG controller with on-chip PHY
CRC calculation unit
96-bit Unique ID
RTC - subsecond accuracy, hardware calendar

Show

STM32F401VBT6 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	100 Pin
Case/Package	LQFP-100
Frequency	84 MHz
Number of Positions	100 Position
Clock Speed	84 MHz
RAM Memory Size	64 KB
Number of Bits	32 Bit
Power Dissipation	465 mW
Number of ADCs	1 ADC
Number of Inputs and Outputs	81 Input IO
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	465 mW
Supply Voltage	1.7.3.6 VDC
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.7 V
	Show
Size-Length	14.2 mm
Size-Width	14.2 mm
Size-Height	1.45 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
