Description

DESCRIPTION
Schottky barrier rectifier designed for high frequency miniature Switched Mode Power Supplies such as adaptators and on board DC/DC converters. Packaged in TO-220AB, I2PAK and TO-220FPAB.
FEATURES AND BENEFITS
■ High junction temperature capability for converters located in confined enrironment
■ Low leakage current at high temperature
■ Low static and dynamic losses as a result of the Schottky barrier
■ Avalanche specification

Show

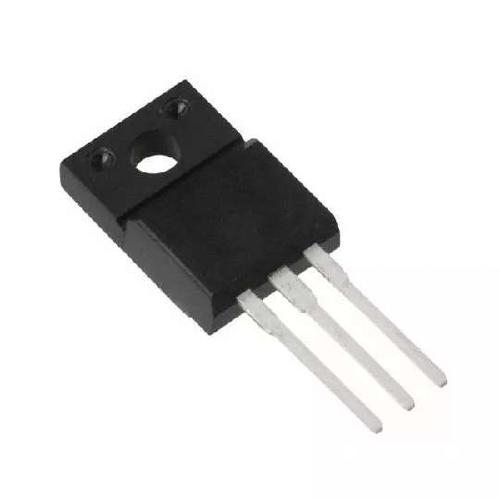

STPS20S100CFP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-220-3
Voltage Rating (DC)	100 V
Current Rating	20.0 A
Output Current	≤20.0 A
Forward Voltage	850mV @10A
Polarity	Standard
Thermal Resistance	3.5 ℃/W
Forward Current	20000 mA
Max Forward Surge Current (Ifsm)	180 A
Forward Current (Max)	20000 mA
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-65 ℃
Junction Temperature	175℃ (Max)
	Show
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
