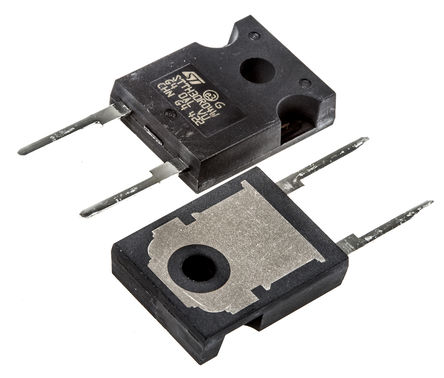

Image is for your reference only,please check specifications for details

STTH30R04W - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC15275200
Category:
TVS Diode
Package:
DO-247-2
Datasheet:
Datasheet 3D Model
Description:
STMICROELECTRONICS STTH30R04W Standard Recovery Diode, 400V, 30A, Single, 1.45V, 100ns, 300A
Stock Locations:
Availability:
843 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.32

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The STTH30R04W is an Ultrafast Recovery Diode with epoxy (UL94V-0) case. The compromise-free, high quality design of this diode has produced a device with low leakage current, regularly reproducible characteristics and intrinsic ruggedness. These characteristics make it ideal for heavy-duty applications that demand long term reliability.
Low reverse current
Low thermal resistance
Reduces switching and conduction losses
High junction temperature

Show

STTH30R04W Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	DO-247-2
Number of Positions	2 Position
Forward Voltage	1.45V @30A
Thermal Resistance	1.15℃/W (RθJC)
Reverse recovery time	100 ns
Forward Current	30 A
Max Forward Surge Current (Ifsm)	300 A
Maximum Forward Voltage (Max)	1.45 V
Forward Current (Max)	30 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-40 ℃
Junction Temperature (Max)	175 ℃
	Show
Size-Length	15.75 mm
Size-Width	5.15 mm
Size-Height	20.15 mm
Operating Temperature	-40℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
