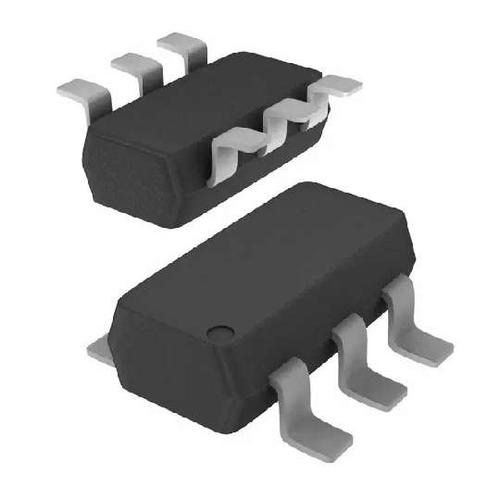

Image is for your reference only,please check specifications for details
- SZNUD3160DMT1G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC1076744
-
Category:MOSFET, MOSFET Transistor
-
Package:SC-74-6
-
Datasheet:Datasheet 3D Model
-
Description:Trans MOSFET N-CH 60V 0.263A 6Pin SC-74 T/R
-
Stock Locations:
-
Availability:1,546 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.39
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Simplify your power management system by implementing this SZNUD3160DMT1G specialized power IC from ON Semiconductor. This USB PWM controller has an operating temperature range of -40 °C to 125 °C.
SZNUD3160DMT1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Number of Pins | 6 Pin |
| Case/Package | SC-74-6 |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 2 Output |
| Output Current | 150 mA |
| Number of Positions | 6 Position |
| Power Dissipation | 0.38 W |
| Output Current (Max) | 150 mA |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 380 mW |
| Supply Voltage (Max) | 60 V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
