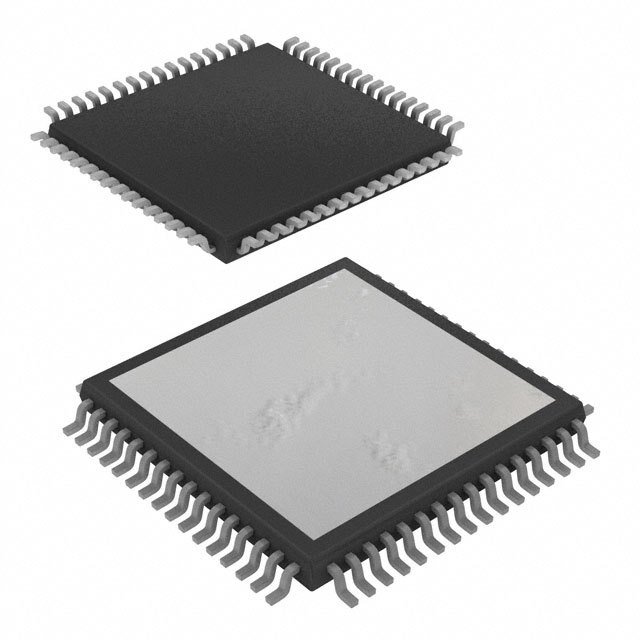

TAS5630PHD - TI
Manufacturer:
TI
ManyChip's Part#:
MC87658819
Category:
Audio Amplifier IC
Package:
TQFP-64
Datasheet:
Datasheet 3D Model
Description:
Audio Amp Speaker 1CH Mono/2CH Stereo/4CH Stereo 600W Class-D 64Pin HTQFP EP Tray
Stock Locations:
Availability:
315 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 17.11

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

DESCRIPTION
The TAS5630 is a high-performance analog-input class-D amplifier with integrated closed-loop
feedback technology (known as PurePath HD technology) with the ability to drive up to 300 W(1)
stereo into 4-Ω to 8-Ω speakers from a single 50-V supply.
FEATURES
• PurePath™ HD Enabled Integrated Feedback Provides:
– Signal Bandwidth up to 80 kHz for High-Frequency Content From HD Sources
– Ultralow 0.03% THD at 1 W into 4 Ω
– Flat THD at all Frequencies for Natural Sound
– 80-dB PSRR (BTL, No Input Signal)
– >100-dB (A-weighted) SNR
– Click- and Pop-Free Start-Up
• Multiple Configurations Possible on the Same PCB With Stuffing Options:
– Mono Parallel Bridge-Tied Load (PBTL)
– Stereo Bridge-Tied Load (BTL)
– 2.1 Single-Ended Stereo Pair and Bridge-Tied Load Subwoofer
– Quad Single-Ended Outputs
• Total Output Power at 10% THD+N
– 600 W in Mono PBTL Configuration
– 300 W per Channel in Stereo BTL Configuration
– 145 W per Channel in Quad Single-Ended Configuration
• High-Efficiency Power Stage (>88%) With 60-mΩ Output MOSFETs
• Two Thermally Enhanced Package Options:
– PHD (64-Pin QFP)
– DKD (44-Pin PSOP3)
• Self-Protection Design (Including Undervoltage, Overtemperature, Clipping, and Short-Circuit Protection) With Error Reporting
• EMI Compliant When Used With Recommended System Design
APPLICATIONS
• Mini Combo System
• AV Receivers
• DVD Receivers
• Active Speakers

Show

TAS5630PHD Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	TQFP-64
Output Current	9 mA
Number of Circuits	3 Circuit
Output Power	300 W
Output Current (Max)	9 mA
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	25V ~ 52.5V
	Show
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
