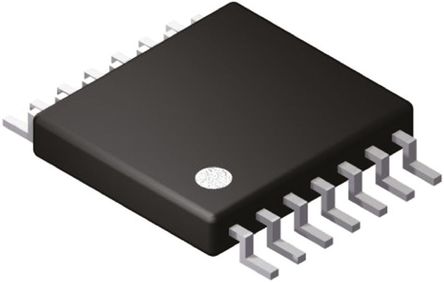

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

TLC2932AIPW Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	TSSOP-14
Frequency	57 MHz
Supply Voltage (DC)	3.00 V, 3.30 V, 5.00 V
Number of Outputs	1 Output
Supply Current	500 µA
Number of Circuits	1 Circuit
Number of Positions	14 Position
Duty Cycle	50 %
Operating Temperature (Max)	75 ℃
Operating Temperature (Min)	-20 ℃
Supply Voltage	2.85V ~ 5.25V
Supply Voltage (Max)	3.15 V
Supply Voltage (Min)	2.85 V
	Show
Size-Length	5 mm
Size-Width	4.4 mm
Size-Height	1.15 mm
Operating Temperature	-20℃ ~ 75℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
