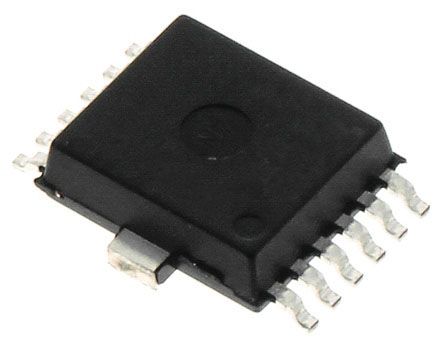

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Summary of Features:
- RDS(on) (typ.) < 100mΩ per switch
- Operation voltage: 5.0 V to 28V
- Fully 3.3/5.5V compatible logic inputs
- Low standby current
- Short circuit and over-temperature protection
- VS under-voltage protection
- Open load detection in ON and OFF state
- Detailed SPI diagnosis or simple error flag
- Qualified according automotive standard AEC-Q100
- Green product (RoHS compliant)
- Benefits:
- Small package saves board space
- Includes over current and over temperature protection
- Simple design with few external components
- SPI enables for easy diagnosis
TLE9201SGAUMA1 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 12 Pin |
| Case/Package | PG-DSO-12-17 |
| Number of Outputs | 1 Output |
| Supply Current | 13 mA |
| Number of Positions | 12 Position |
| Switching Frequency | 20 kHz |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 5V ~ 28V |
| Supply Voltage (Max) | 28 V |
| Supply Voltage (Min) | 5 V |
| Show | |
| Size-Length | 7.5 mm |
| Size-Width | 6.4 mm |
| Size-Height | 2.35 mm |
| Operating Temperature | -40℃ ~ 150℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
