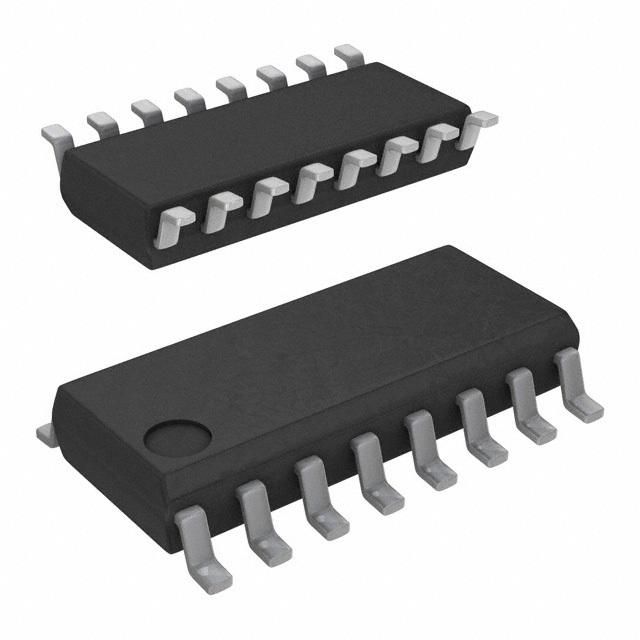

Image is for your reference only,please check specifications for details

TPS2044D - TI
Manufacturer:
TI
ManyChip's Part#:
MC62398663
Category:
Power Distribution
Package:
SOIC-16
Datasheet:
Datasheet 3D Model
Description:
0.7A, 2.7-5.5V Quad (2In/4Out) Hi-Side MOSFET, Fault eport, Act-Low Enable 16-SOIC -40℃ to 85℃
Stock Locations:
Availability:
684 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.05

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Use this high side switch and usb power distribution switch TPS2044D USB powered Ethernet switch from Texas Instruments to control which one of your devices draws power. By only needing an input voltage of 2.7 V with a maximum of 5.5 V, this is the best way to control the power in your circuit. Its current limit is 0.9 A. In order to ensure parts aren"t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This USB powered network switch has a minimum operating temperature of -40 °C and a maximum of 85 °C.

Show

TPS2044D Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	5.50V (max)
Number of Outputs	4 Output
Output Voltage	6.30 V
Output Current	≤500 mA
Drain to Source Resistance (on) (Rds)	135 mΩ
Polarity	N-Channel
Power Dissipation	725 mW
Continuous Drain Current (Ids)	500 mA
Rise Time	3000 µs
Input Voltage (Max)	5.5 V
Input Voltage (Min)	2.7 V
Output Current (Max)	500 mA
Fall Time	4400 µs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	725 mW
Input Voltage	2.7V ~ 5.5V
	Show
Size-Height	1.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
