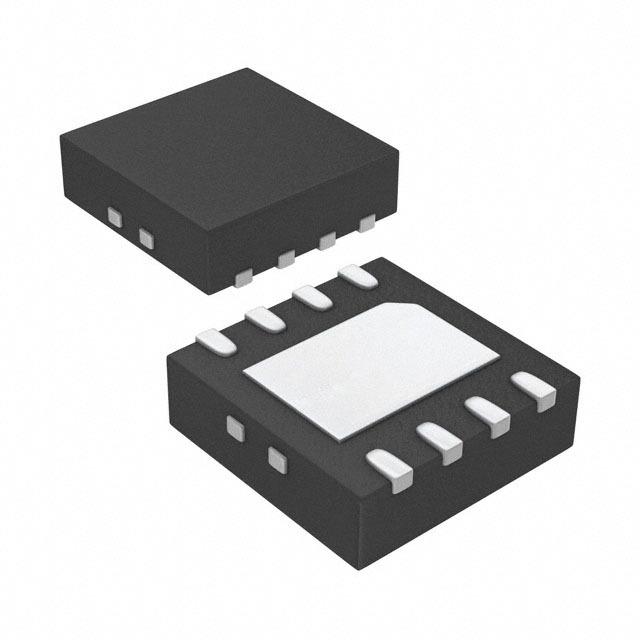

TPS61060DRBR - TI
Manufacturer:
TI
ManyChip's Part#:
MC7034475
Category:
LED Driver, LED Display Driver
Package:
VSON EP-8
Datasheet:
Datasheet 3D Model
Description:
15V, 400mA Switch, 1MHz Boost Converter w/Brightness Control for White LED Power Supplies 8-SON -40℃ to 85℃
Stock Locations:
Availability:
22 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 1.12

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS61060DRBR is a high-frequency synchronous Boost Converter with constant current output to drive up to 5 white LEDs. For maximum safety, the device features integrated over-voltage and an advanced short-circuit protection when the output is shorted to ground. The device operates with 1MHz fixed switching frequency to allow for the use of small external components and to simplify possible EMI problems. The device comes with three different over-voltage protection thresholds (14/18/23V) to allow inexpensive and small-output capacitors with lower voltage ratings. The LED current is initially set with the external sense resistor Rs and the feedback voltage is regulated to 500 or 250mV, depending on the ILED pin configuration. Digital brightness control is implemented by applying a simple digital signal to the ILED pin. Alternatively, a PWM signal up to 1kHz can be applied to the enable pin to control the LED brightness.
Integrated over-voltage and short-circuit protection
PWM brightness control on enable
Digital brightness control on ILED
LEDs disconnected during shutdown
Operates with small-output capacitors down to 220nF
Up to 80% efficiency
400mA Internal power MOSFET switch
Green product and no Sb/Br

Show

TPS61060DRBR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	VSON EP-8
Frequency	1 MHz
Supply Voltage (DC)	6.00V (max)
Number of Outputs	1 Output
Input Voltage (DC)	2.70V ~ 6.00V
Output Voltage	15 V
Output Current	400 mA
Number of Positions	8 Position
Quiescent Current	1.00 mA
Number of Regulated Outputs	1 Output
Switching Frequency	1 MHz
Topology	Boost
Input Voltage (Max)	6 V
Input Voltage (Min)	2.7 V
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	2.7V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2.7 V
Input Voltage	6 V
	Show
Size-Length	3 mm
Size-Width	3 mm
Size-Height	0.88 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
