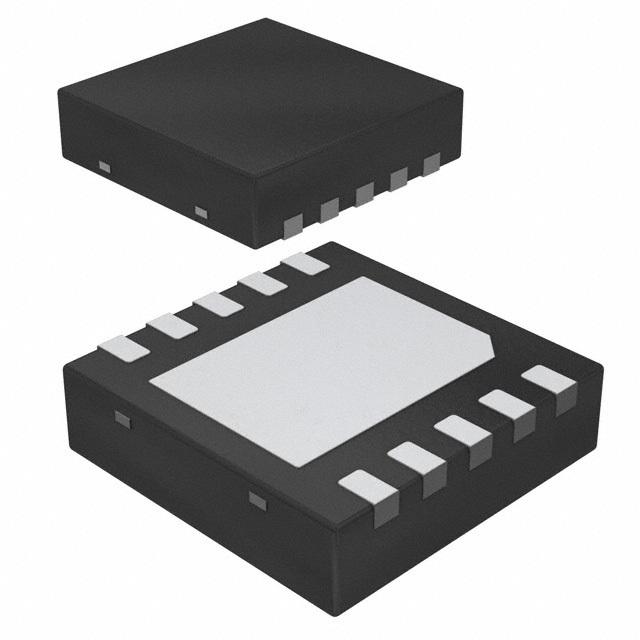

Image is for your reference only,please check specifications for details
- TPS63060MDSCTEP - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC13304996
-
Category:Voltage Regulator
-
Package:WFDFN-10
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.5V to 12V Step Down/Step Up Single-Out 2.5V to 8V 1A 10Pin WSON EP T/R
-
Stock Locations:
-
Availability:239 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 14.66
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TPS63060 provides a power supply solution for products powered by either three-cell up to six-cell alkaline, NiCd or NiMH battery, or a one-cell or dual-cell Li-Ion or Li-polymer battery. Output currents can go as high as 2A while using a dual-cell Li-Ion or Li-Polymer Battery, and discharge it down to 5V or lower. The buck-boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters Power Save mode to maintain high efficiency over a wide load current range. The Power Save mode can be disabled, forcing the converter to operate at a fixed switching frequency. The maximum average current in the switches is limited to a typical value of 2.25A. The output voltage is programmable using an external resistor divider, or is fixed internally on the chip. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is packaged in a 10-pin SON PowerPAD package measuring 3mm × 3mm (DSC).
TPS63060MDSCTEP Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 10 Pin |
| Case/Package | WFDFN-10 |
| Number of Outputs | 1 Output |
| Output Voltage | 2.5V ~ 8V |
| Output Current | 1 A |
| Quiescent Current | 30.0 µA |
| Number of Regulated Outputs | 1 Output |
| Switching Frequency | 2.4 MHz |
| Switching Current | 2 A |
| Input Voltage (Max) | 12 V |
| Input Voltage (Min) | 2.5 V |
| Output Voltage (Max) | 8 V |
| Output Voltage (Min) | 2.5 V |
| Output Current (Max) | 1 A |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Input Voltage | 12 V |
| Show | |
| Operating Temperature | -55℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
