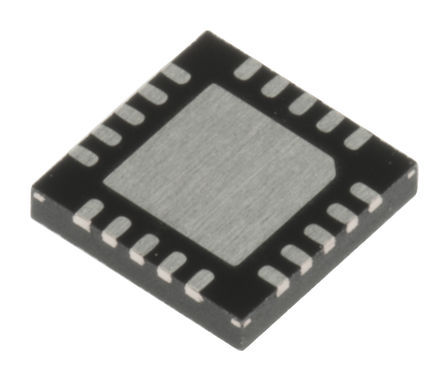

TPS7A7100RGWT - TI
Manufacturer:
TI
ManyChip's Part#:
MC43107727
Category:
Voltage Regulator
Package:
VQFN-20
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TPS7A7100RGWT LDO Voltage Regulator, Adjustable, 1.5V to 6.5V in, 140mV drop, 900mV to 5V/1A out, VQFN-20
Stock Locations:
Availability:
256 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.02

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS7A7100RGWT is a low-dropout (LDO) Voltage Regulator designed for applications seeking very-low dropout capability with an input voltage from 1.5 to 6.5V. The device offers an innovative, user-configurable, output-voltage setting from 0.9 to 3.5V, eliminating external resistors and any associated error. The device has very fast load-transient response, is stable with ceramic output capacitors and supports a better than 2% accuracy over line, load and temperature. Additionally, an open-drain, power-good signal allows for sequencing power rails. This device offers a fully user-configurable output voltage setting method. The device output voltage can be programmed to any target value from 0.9 to 3.5V in 50mV steps. The device also has very good line and load transient response. All these features allow the device to meet most voltage-regulator needs for under 6V applications, using only one device so less time is spent on inventory control.
Very good load and line-transient response
Programmable soft-start
1.5% Accuracy overline, overload and overtemperature
Green product and no Sb/Br

Show

TPS7A7100RGWT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	VQFN-20
Number of Outputs	1 Output
Output Voltage	0.9V ~ 5V
Output Current	1 A
Supply Current	4 mA
Number of Positions	20 Position
Quiescent Current	0.01 mA
Output Capacitor Type	Ceramic
voltage rating	140 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	6.5 V
Input Voltage (Min)	1.425 V
Output Voltage (Max)	5 V
Output Voltage (Min)	900 mV
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±2 %
Input Voltage	1.425V ~ 6.5V
	Show
Size-Length	5.15 mm
Size-Width	5.15 mm
Size-Height	0.92 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
