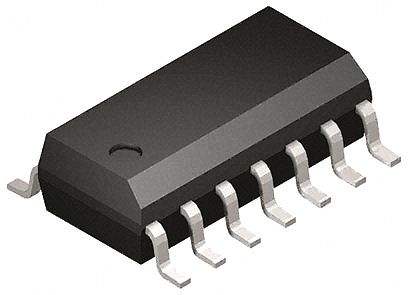

Image is for your reference only,please check specifications for details

UC3845BDG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC12106621
Category:
Voltage Regulator
Package:
SOIC-14
Datasheet:
Datasheet 3D Model
Description:
UC3845BDG, PWM Current Mode Controller, 1A, 275kHz, 30V, 14Pin SOIC
Stock Locations:
Availability:
220 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.98

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The UC3845BDG is a high-performance fixed frequency current-mode Pulse Width Modulation (PWM) Controller specifically designed for off-line and DC to DC converter applications offering the designer a cost-effective solution with minimal external components. It features an oscillator, a temperature compensated reference, high gain error amplifier, current sensing comparator and a high current totem pole output ideally suited for driving a power MOSFET. Also included are protective features consisting of input and reference undervoltage lockouts each with hysteresis, cycle-by-cycle current limiting, a latch for single pulse metering and a flip-flop which blanks the output off every other oscillator cycle, allowing output deadtimes to be programmed from 50 to 70%.
Trimmed oscillator for precise frequency control
Automatic feed forward compensation
Internally trimmed reference with undervoltage lockout
High current totem pole output
Undervoltage lockout with hysteresis
Low startup and operating current

Show

UC3845BDG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	14 Pin
Case/Package	SOIC-14
Frequency	52 kHz
Supply Voltage (DC)	12.0V (min)
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	30.0 V
Output Voltage	13.4 V
Output Current	200 mA
Supply Current	12 mA
Number of Positions	14 Position
Power Dissipation	862 mW
Rise Time	50 ns
Switching Frequency	500 kHz
Topology	Flyback, Forward, Step-Up, Step-Down
Duty Cycle	48 %
Maximum Duty Cycle	48 %
Fall Time	50 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	862 mW
Supply Voltage	7.6V ~ 36V
Supply Voltage (Max)	25 V
Supply Voltage (Min)	12 V
	Show
Size-Length	8.75 mm
Size-Width	4 mm
Size-Height	1.5 mm
Operating Temperature	0℃ ~ 70℃ (TA)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
