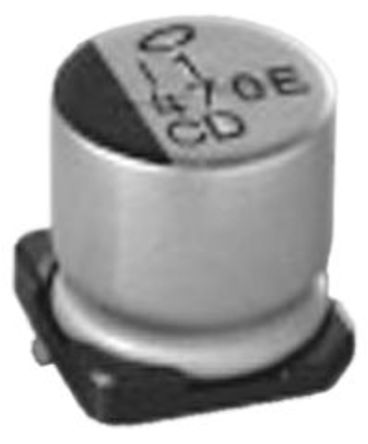

Image is for your reference only,please check specifications for details
- UCD2A680MNQ1MS - Nichicon
-
Manufacturer:Nichicon
-
ManyChip's Part#:MC13070562
-
Category:Aluminum Electrolytic Capacitors, Aluminum Capacitors, Capacitors Aluminum
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:68uF ±20% 100V 500mA(100kHz)500mA Φ12.5mm
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- 68µF 100V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
UCD2A680MNQ1MS Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | SMD |
| Voltage Rating (DC) | 100 V |
| Operating Voltage | 100 VDC |
| Capacitance | 68 µF |
| Equivalent Series Resistance (ESR) | 0.32 Ω |
| Capacitance Tolerance | ±20 % |
| Part Family | UCD |
| Ripple Current | 500 mA |
| Ripple Current (Low Frequency) | 250mA @120Hz |
| Ripple Current (High Frequency) | 500mA @100kHz |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Voltage Rating | 100 VDC |
| Show | |
| Size-Length | 13.5 mm |
| Size-Height | 13.5 mm |
| Size-Diameter | Φ12.5mm |
| Operating Temperature | -55℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| Minimum Packing Quantity | 200 |
| Life (Hours) | 5000 h |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
