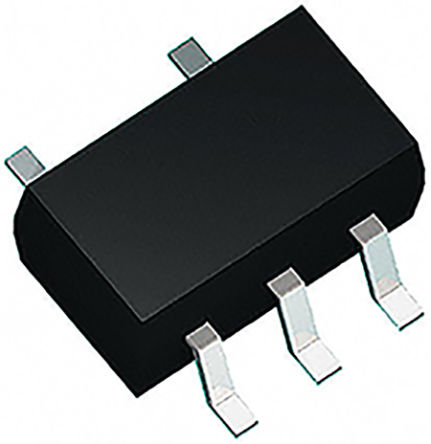

Image is for your reference only,please check specifications for details

USBDF01W5 - ST Microelectronics
Manufacturer:
ST Microelectronics
ManyChip's Part#:
MC2304000
Category:
RFI Shielding
Package:
SOT-323-5
Datasheet:
Datasheet 3D Model
Description:
RC (Pi) EMI Filter 2nd Order Low Pass 2Channel R = 33Ω, C = 47pF 5-TSSOP, SC-70-5, SOT-353
Stock Locations:
Availability:
10,496 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.42

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The USBDF01W5 is an EMI Filter and Line Termination for USB downstream ports. The USB specification requires USB downstream ports to be terminated with pull-down resistors from the D+ and D- lines to ground. On the implementation of USB systems, the radiated and conducted EMI should be kept within the required levels as stated by the FCC regulations. In addition to the requirements of termination and EMC compatibility, the computing devices are required to be tested for ESD susceptibility. The USBDFxxW5 provides the recommended line termination while implementing a low pass filter to limit EMI levels and providing ESD protection which exceeds IEC 61000-4-2 level 4 standard.
Monolithic device with recommended line termination for USB downstream ports
Integrated Rt series termination and Ct bypassing capacitors
EMI / RFI noise suppression
Required line termination for USB downstream ports
IPAD™ technology provides high flexibility in the design of high density boards
Tailored to meet USB 1.1 standard

Show

USBDF01W5 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SOT-323-5
Capacitance	47 pF
Number of Channels	2 Channel
Number of Positions	5 Position
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-40 ℃
	Show
Size-Length	1.4 mm
Size-Width	2.2 mm
Size-Height	1.1 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2014/06/16
ECCN Code	EAR99
