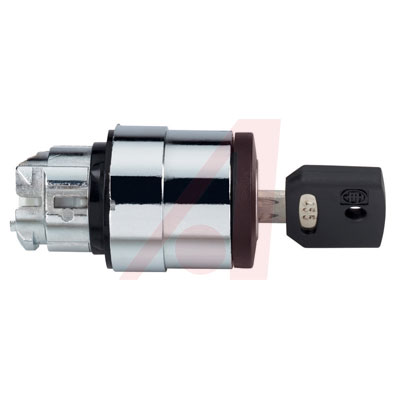

Image is for your reference only,please check specifications for details
- ZB4BG03 - Schneider Electric
-
Manufacturer:Schneider Electric
-
ManyChip's Part#:MC21128560
-
Category:Keylock Switches
-
Datasheet:Datasheet 3D Model
-
Description:Переключатель: поворотный с ключом; 3 положения; 22 мм; черный цвет; подсветка: отсутствует
-
Stock Locations:
-
Availability:11 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 73.01
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Модульная линейка металлических блоков управления и сигнализации Harmony XB4, имеющая размер 22 мм, сочетает простоту установки, гибкость и надежность, чтобы удовлетворить большинству промышленных задач.
- *Особенности:**
- Соответствие стандартам IEC, UL, CSA, CCC EAC и JIS, а также маркировке CE и морским сертификатам; защитные уровни IP66, 67, 69, 69K и тип 4X; рабочая температура от -40°C до 70°C; уровень защиты от ударов до IK06; высокая устойчивость к вибрации благодаря противоударным терминальным винтам; широкий выбор аксессуаров для индивидуализации ваших панелей; доступны различные типы соединений: винтовой зажим, разъем, разъем Faston, пружинный терминал или печатная плата; большой выбор контактных блоков для общих целей или специфических применений (низкий ток, стандартное или высокопроизводительное коммутационное оборудование).
- *Преимущества**
- Высокая производительность даже в самых сложных условиях
- Гибкость и адаптивность благодаря модульной конструкции
- Простота и скорость установки
- Широкий выбор решений, подходящих для всех ваших задач
- Привлекательный дизайн, усиленный комплектом для плоской установки
ZB4BG03 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Type of switch | rotary with key |
| Stable positions number | 3-position |
| Switch standard | 22mm |
| Actuator colour | black |
| Illumination | none |
| IP rating | IP66 |
| Button shape | prominent |
| Manufacturer series | Harmony XB4 |
| Operating temperature | -25...70°C |
| Mounting hole diameter | Ø22mm |
| Number of all positions | 3 |
| Caution! | Contact sets must be ordered separately. |
| Button marking | blank |
| Related items | ZB4BZ009, ZBE101, ZBE102, ZBE201, ZBE202, ZBE203, ZBE204, ZBE205 |
| Dimensions | see |
| Show | |
| Operating Temperature | -25℃ ~ 70℃ |
| RoHS | RoHS Compliant |
