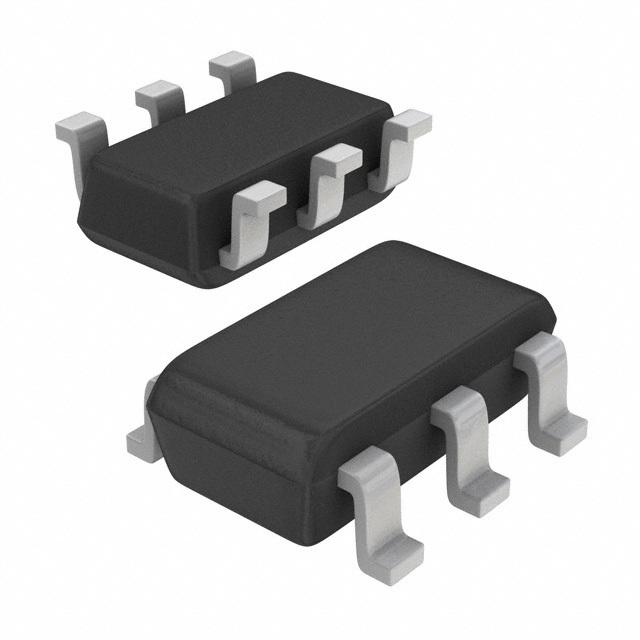

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The ZXGD3005E6TA is a high-speed non-inverting single Gate Driver capable of driving up to 10A into a MOSFET or IGBT gate capacitive load from supply voltages up to 25V. With propagation delay times down to <20ns. This gate driver ensures rapid switching of the MOSFET to minimize power losses and distortion in high current switching applications. It is ideally suited to act as a voltage buffer between the typically high output impedances of a controller IC and the effectively low impedance on the gate of a power MOSFET during switching. Its low input voltage requirement and high current gain allows high current driving from low voltage controller ICs. It has separate source and sink outputs that enables the turn-on and turn-off times of the MOSFET to be independently controlled. This has been designed to be inherently rugged to latch-up and shoot-through issues. The optimized pin-out SOT26 package eases board layout, enabling reduced parasitic inductance of traces.

Show

ZXGD3005E6TA Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Rise/Fall Time	48ns, 35ns
Number of Outputs	1 Output
Output Current	4 A
Number of Positions	6 Position
Power Dissipation	1.1 W
Rise Time	20 ns
Output Current (Max)	10 A
Fall Time	20 ns
Fall Time (Max)	20 ns
Fall Time (Max)	20 ns
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1100 mW
Supply Voltage	25 V
	Show
Operating Temperature	-55℃ ~ 150℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
